Backup cameras enable higher levels of driving safety by eliminating blind spots and preventing accidents.
While installing these safety cameras might seem intimidating, wiring your own camera is surprisingly manageable with the right guidance.
This guide simplifies the process of how to wire a backup camera for you, whether you’re retrofitting an older vehicle like a 2009 Chevy Impala or upgrading a modern truck like a 2013 F150. We’ll cover universal wiring principles, vehicle-specific nuances, and offer pro tips to avoid common pitfalls.

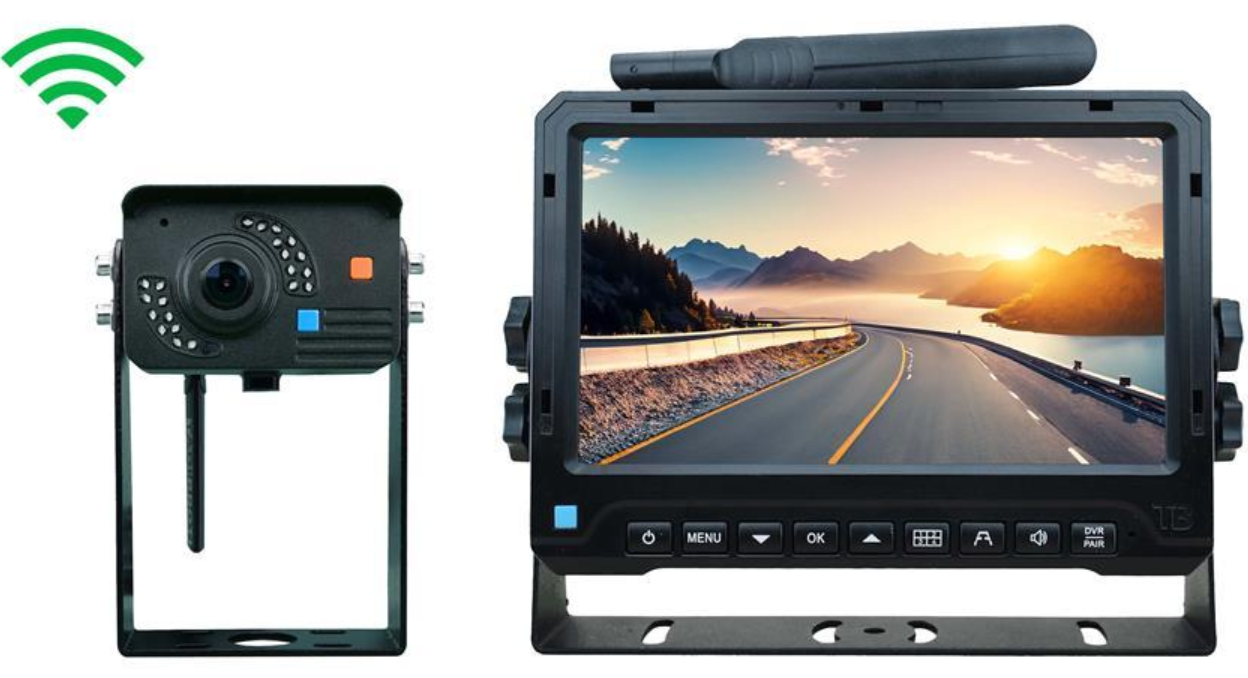

Backup Camera 1080P, 300ft+ Wireless Range (V3)
Tools & Materials You’ll Need
Have these essentials on hand before starting:
- Wiring essentials: 18-gauge wire, butt connectors, fuse taps, electrical tape, wire strippers
- Safety gear: Gloves, safety glasses
- Camera kit: Includes camera, monitor, and wiring harness
- Optional: Relay kit (for switched setups), multimeter (for testing circuits)
Pro Tip: Opt for a Premium Cable offered by TadiBrothers to ensure that you have quality materials for seamless installation.
Steps To Install Backup Cameras
Step 1: Mount the Camera & Plan the Wiring Route
Camera Placement
- License plate mounts: Ideal for sedans (e.g., Ford Expedition).
- Tailgate handles: Perfect for trucks (e.g., F250).
- RV/trailer frames: Use waterproof housings (like Furrion models).
Routing Wires
- Through the trunk/hatch: Remove interior trim panels and route wires alongside factory harnesses. Use rubber grommets to protect the wires from any sharp edges.
- Along the frame (RVs/trucks): Secure wires with zip ties inside frame rails. Avoid areas near exhaust or moving parts.
- Under carpeting: For a seamless look in SUVs like the Toyota Highlander.
Tip: This RV Backup Camera Guide simplifies the steps on how to wire a backup camera for multi-camera systems.
Step 2: Connect Power to the Reverse Light
Wiring to the reverse light ensures the camera turns on automatically when shifting into reverse. Here’s how to wire a backup camera to the reverse light:
- Locate the reverse light wire:
- Access taillight wiring via the trunk or hatch.
- Use a multimeter to identify the +12V wire (activates when reversing).
Note: Color codes vary; white for Jeep Patriot, blue/black or green/black for VW.
- Tap into the wire:
- Strip a half-inch section of the reverse light wire.
- Connect the camera’s red (+) wire using a butt connector.
- Ground the camera:
- Attach the black (-) wire to a bare metal bolt on the chassis.
Why this works: The reverse light circuit provides switched power only when needed, preserving battery life.
Step 3: Alternative Wiring Methods
Use a dashboard switch
- Connect to constant +12V: Use a fuse tap on an ignition-powered circuit (e.g., radio fuse).
- Install a toggle switch: Splice the switch into the camera’s power wire near the dashboard.
- Add a relay (for high-amperage cameras): Prevents switch overload.
- Relay pin 30: Battery +12V
- Pin 85: Ground
- Pin 86: Switch wire
- Pin 87: Camera power
Troubleshooting tip: If the camera flickers, install an engine noise suppressor
Directly to the Head Unit
Aftermarket stereos (e.g., Pioneer NEX) often have dedicated camera inputs:
- Video cable: Run RCA cables from the camera to the head unit.
- Trigger wire: Connect the head unit’s “reverse trigger” wire to the reverse light circuit.
Step 4: Run Wires to the Front
- Through the cabin: Tuck wires under door sill trim (use a plastic pry tool).
- Under the vehicle: For trucks/RVs, use conduit to shield wires from debris.
- Firewall access: Pass wires through existing grommets (e.g., near the steering column in Silverados).
Avoid interference: Keep power wires 6+ inches from RCA cables.
Step 5: Test & Troubleshoot
- Pre-check: Verify all connections are insulated and secure.
- Power test: Use a multimeter to confirm +12V at the camera.
- Common issues:
- No image: Check ground points or RCA connections.
- Weak signal: Upgrade to a higher-gauge wire for long runs (RVs/5th wheels).
- Flickering: Install a relay or noise suppressor.
Recommended read: Wiring Guide for DIY installers
TadiBrothers Product Recommendations
Maximize reliability with these purpose-built solutions:
Safety Notes
- Even if you’re experienced at how to wire a backup camera, always disconnect the battery before wiring to prevent shorts.
- Use fuse taps on powered circuits, never splice directly into factory wires.
- Seal exterior connections with dielectric grease to prevent corrosion.
Conclusion
Wiring a backup camera is a rewarding DIY project that enhances safety without you having to worry about professional costs.
Whether you’re activating via reverse lights or a custom switch, the core principles remain consistent: secure connections, clean wire routing, and quality components. For hassle-free installations, leverage TadiBrothers’ vehicle-specific kits and guides that are engineered to eliminate guesswork.
